♦ This time switch clock DT9 is used to control various appliances in real time; daily, weekly, monthly and yearly mode.

♦ Switching: According the program (AUTO)/constantly manually, manually to next program change/random (CUBE).

♦ Holiday program option to choose an interval when the device doesn't switch according to the standard program, but will be block during that time.

♦ Automatic conversion summer/winter time.

♦ Sealable cover of front panel, easy controlling via 4 buttons.

♦ 100 memory places, clear LCD display, min. invertal 1s.

♦ Voltage range: AC 230V or AC/DC 12-240V.

♦ Cyclic output.

♦ Pulse output.

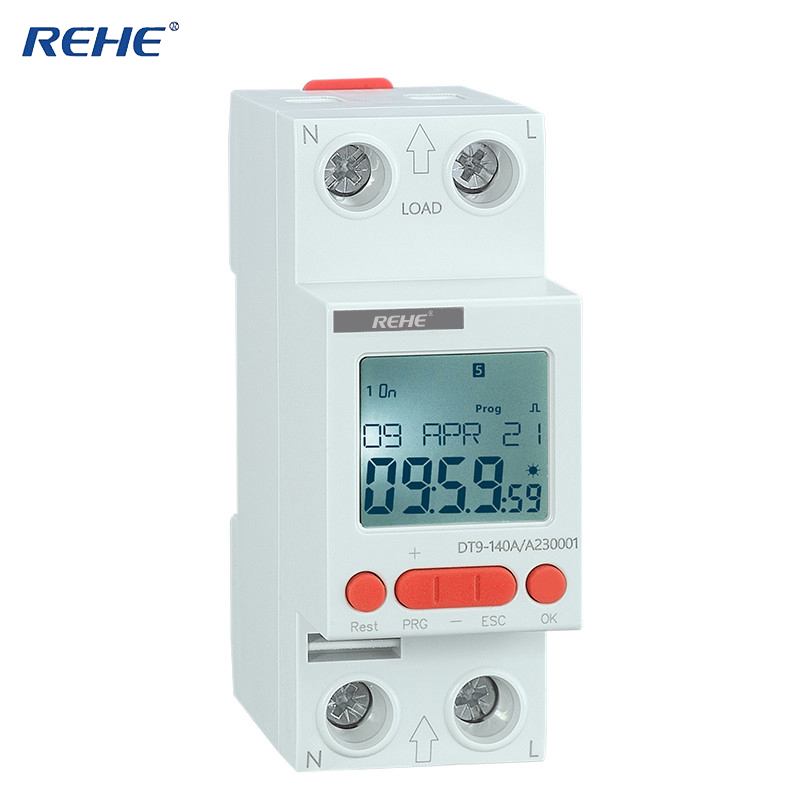

♦ DT9-140: One channel version, 2-MODULE, DIN rail mounting, clamp terminals.
