instrument current transformer SDH-40 100A - 600A electronical current transformer with 5A / 1A output

Product Description

instrument current transformer SDH-40 100A - 600A electronical current transformer with 5A / 1A output

SDH range of current transformers can be applied to test,control,display and record the running of the electrical equipment,

and to protect the equipment against the damage,in the AC circuit with the rated voltage value below 720V and the frequency

of 50-60Hz.The product can be also applied to form a complete set of mine transformer.


Features:

1. Safe. Easy to install, porttable
2. Wide inner window, allowing clamping of big cables or bus-bars
3. Wide range of sizes to accommodate all the existing installations


Application:

1. Current measurement, monitoring and protection for electrical wiring and equipment.
2. Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition

equipment and automation - control system.
3. Current, power and energy monitoring device.
4. Relay protection device.


Technical data:

Electrical ParameterMechanical Parameter
Frequency50/60HzCasePC/UL94-V0
Rated Input1A-5000ABobbinPBT
Measuring range5%In-120%InCoreSilicon steel
Rated Output1A,5AConstructionScrew
Ratio Voltage0.72KV (AC)Operating Temp-25℃~+75℃
Dielectric strength3.0KV/1mA/1minOperating Humidity≤85%
Insulation ResistanceDC500V/100MΩ minOutput ConnectionTerminal

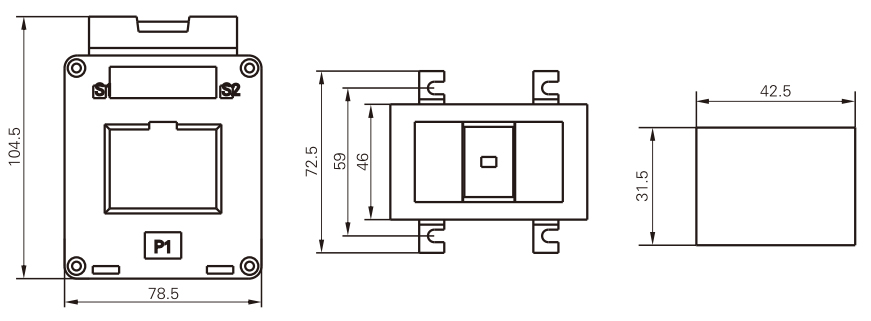

Technical Parameter

ModelPrimary / SecondaryBusbar Hole Dimensions(mm)Rated Burden (VA)Accuracy ClassRated Voltage
SDH-40100/5A~600/5A42*32mm2.5~100.2/0.5s/0.5 / 1.00.72KV(AC)
SDH-50200/5A~800/5A52*32mm5~100.2/0.5s/0.5 / 1.00.72KV(AC)
SDH-60300/5A~1200/5A62*32mm5~100.2/0.5s/0.5/1.00.72KV(AC)
SDH-80750/5A~2000/5A82*32mm5~150.2/0.5s/0.5/1.00.72KV(AC)
SDH-1001000/5A~3000/5A102*32mm10~300.2/0.5s/0.5/1.00.72KV(AC)
SDH-1201500/5A~4000/5A122*32mm20~300.2/0.5s/0.5/1.00.72KV(AC)
SDH-1503000/5A~8000/5A152*32mm300.2/0.5s/0.5/1.00.72KV(AC)

instrument current transformer SDH-40 100A - 600A electronical current transformer with 5A / 1A output instrument current transformer SDH-40 100A - 600A electronical current transformer with 5A / 1A output

Quality instrument current transformer SDH-40 100A - 600A electronical current transformer with 5A / 1A output for sale
