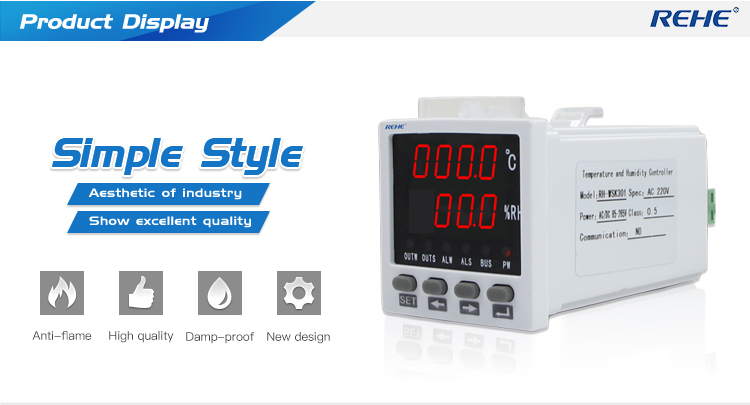

Product description

1. temperature and humidity controller uses dedicated microprocessor, SMTmounting technology and high-precision temperature and humidity sensors.Compact, reliable performance, high precision measurement and control thetemperature and humidity, strong anti-jamming ability, controls are simple. Can bewidely used in industry, agriculture, medicine, chemical industry, warehouse, etcwhere temperature and humidity measurement and control are needed.

2. the controller with temperature, temperature alarm, heater disconnection alarmfunction, communication function, widely used in automation and controlapplications.

Note: the alarm and disconnection alarm output contact for the same.

Main technical index

Supply voltage (default power switch power supply)

AC: switching power supply 85V~265V,50~60Hz

AC: transformer 110V, 220V, 380V,50~60Hz

DC:24V,36V,48V,110V,220V

Measurement accuracy

Temperature: + 0.5 c

Humidity: +5%RH

Resolution: 14 Bit

Sampling time: 0.5 Sec

Range of measurement and control

Temperature:-40~100℃

Humidity: 0~100%RH

Display mode

Measured value, set the value of digital display

Output status, alarm status LED light indication

Control mode

Two-position control (hysteresis can be set freely)

Control output

1. relay output: contact capacity 250VAC 3A (resistive load)

2. voltage pulse output: 0~12V (for solid state relay SSR)

Output contact

Durability: 1X10

Mechanical durability: 1X10

Installation methods

Panel mounting, flush mounting.

Other

1. insulation resistance: >50M ω (500VDC)

2. dielectric strength: 1500VAC/1 minutes

3. power consumption: <10VA

4. environment: 0~50℃, 60~85%RH, non-corrosive gases

5. weight: about 0.5Kg (power switch power supply)

6. disconnection alarm function

Package:
* Standard export cartons meet long-distance demand;

* Standard Neutral package or Customized.

Shipping:
* By sea: Ningbo ,Shanghai;
* By Air: DHL,UPS , TNT,Fedex, etc;

* Ship as your requirements.
