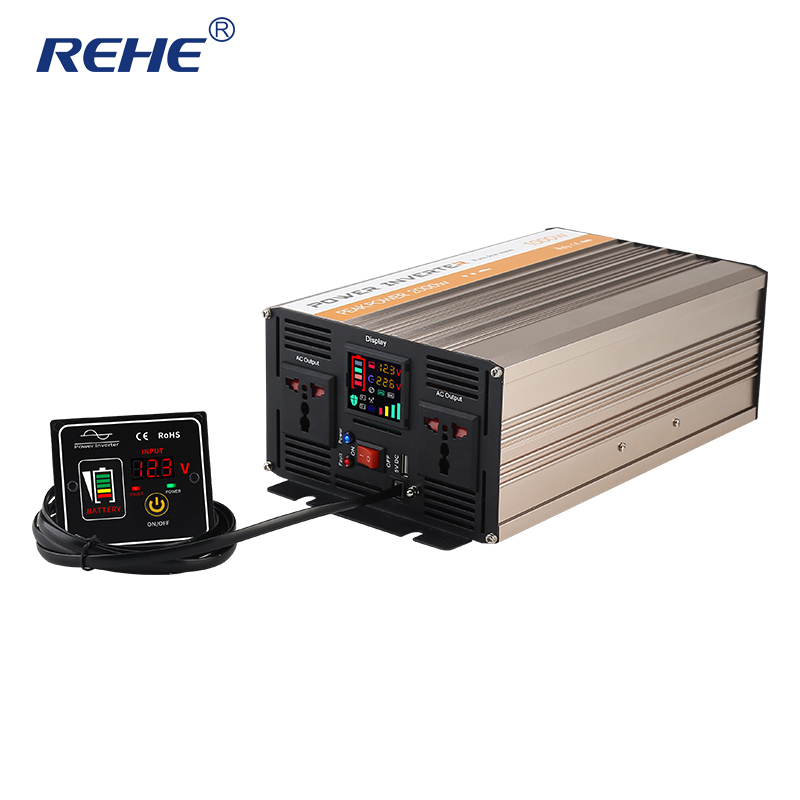

Dual Voltage 1000W High Quality Off Grid Type Pure Sine Wave Inverter Power Inverter Solar Inverter

Product Categories

YUEQING RENHE ELECTRIC CO., LTD.

Contact Now

Add to Cart

Specification
Model	CSP1000-12/24V-2
Rated Power	1000W
Surge Power	2000W
Input Voltage	12V/24VDC automatic recognition
Output Voltage	110VAC±5%	220VAC±5%
USB Port	5V 1000MA
Frequency	50HZ±3 or 60HZ±3
Output Waveform	Pure sine wave
Soft Start	YES
THD/AC Regulation	THD<3%(Linear Load)
Output Effciency	94.2% MAX
No Load Current)	0.2A	0.1A
DC Voltage Range	10V-15V	20V-31V
Low Voltage Alarm	10.5±0.5V	21±0.5V
low Voltage Shut Down	10±0.5V	20±0.5V
Low Voltage Recovery	13±0.5V	24±0.5V
Over Voltage Shut Down	15±0.5V	31±0.5V
Over Voltage Recovery	14.7±0.5V	29±0.5V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	(-10℃+60℃ Civil class,-25℃+60℃ technical grade,-40℃+70℃ army grade)
Storage Temperature	(-40℃ - 70℃)
Humidity	90% MAX,Non-condensing
Warranty	2 Years
Net Dimension	320171103mm(LxWxH)
Package Dimension	395230170mm(LxWxH)
N.W./Unit/G.W./Unit	3.2kg/3.6Kg
Ctn	6PCS
Meas./Ctn	535470407mm(LxWxH)
G.W./Ctn	23kg

Dual Voltage 1000W High Quality Off Grid Type Pure Sine Wave Inverter Power Inverter Solar Inverter
