DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector

YUEQING RENHE ELECTRIC CO., LTD.
Contact Now
    Buy cheap DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector from wholesalers

    Buy cheap DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector from wholesalers
    • Buy cheap DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector from wholesalers

    DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector

    Ask Lasest Price
    Brand Name : SUCHEN
    Model Number : DV2-1T63A
    Price : $12.48/pieces
    • Product Details
    • Company Profile

    DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector

    DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector

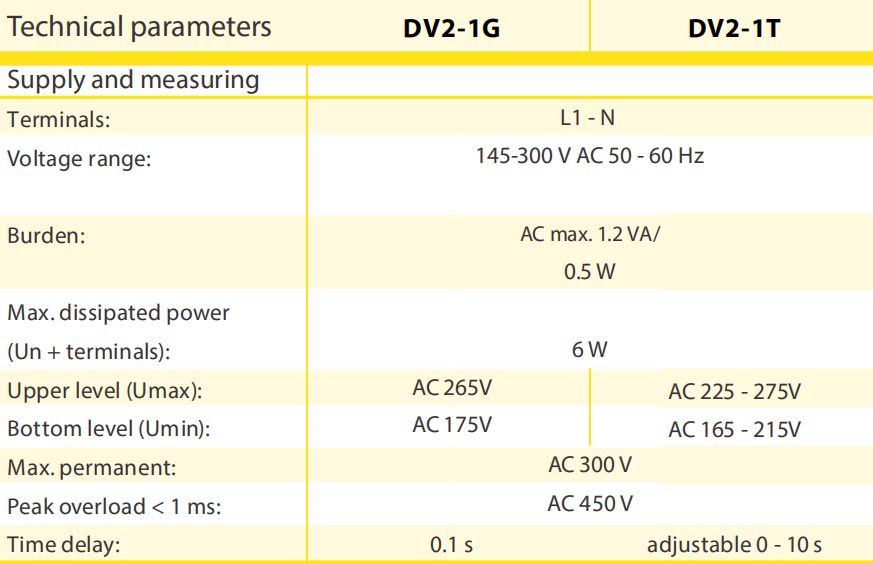

    Technical parameters

    DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector


    It serves to control supply voltage for appliances sensitive to supply tolerance, protection of the device against under/over voltage.

    ♦ DV2-1G is fixed settings, DV2-1T is Adjustable settings over/under voltage relay. For difference settings of over/under voltage.

    ♦ 3-state indication-LEDs indicating normal state and 2 fault states.

    ♦ Supply from monitored voltage (monitors level of its own supply).

    ♦ 2-MODULE, DIN rail mounting.

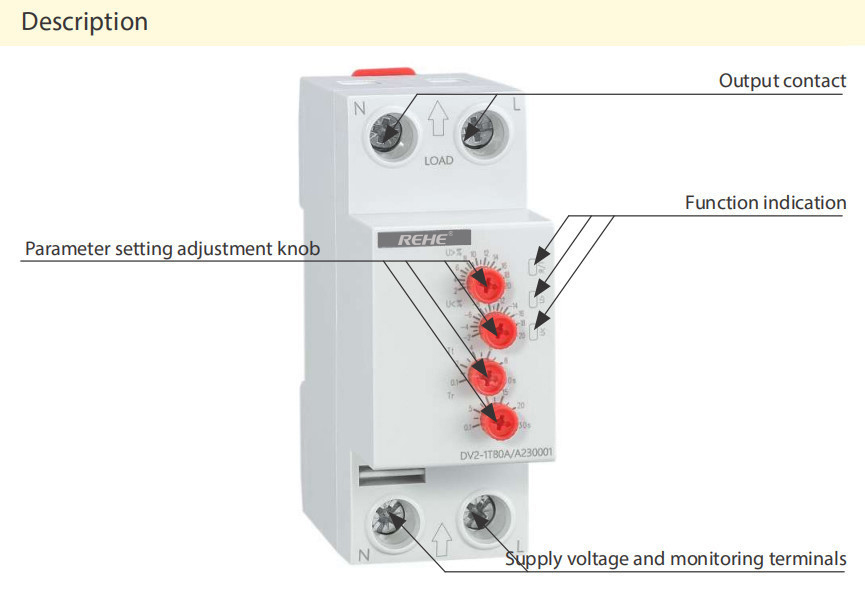

    Description

    DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector

    Connection

    DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector

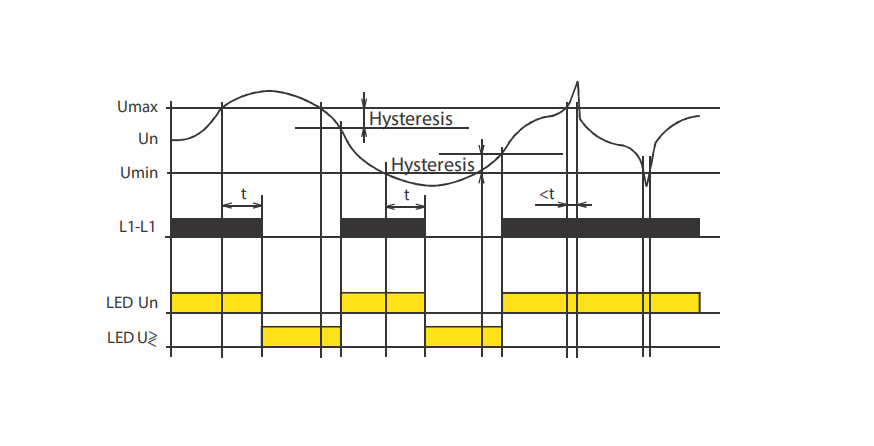

    Symbol

    DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector

    ModelVoltage rangeSwitching voltageOperational currentUnitPrice
    DV2-1T63A

    145-300V

    AC 50-60Hz

    250V AC163A1PC$12.48

    DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector

    Quality DV2-1T63A Adjustable Voltage Monitoring Auto Reset Under Voltage and Over Voltage Protector for sale
