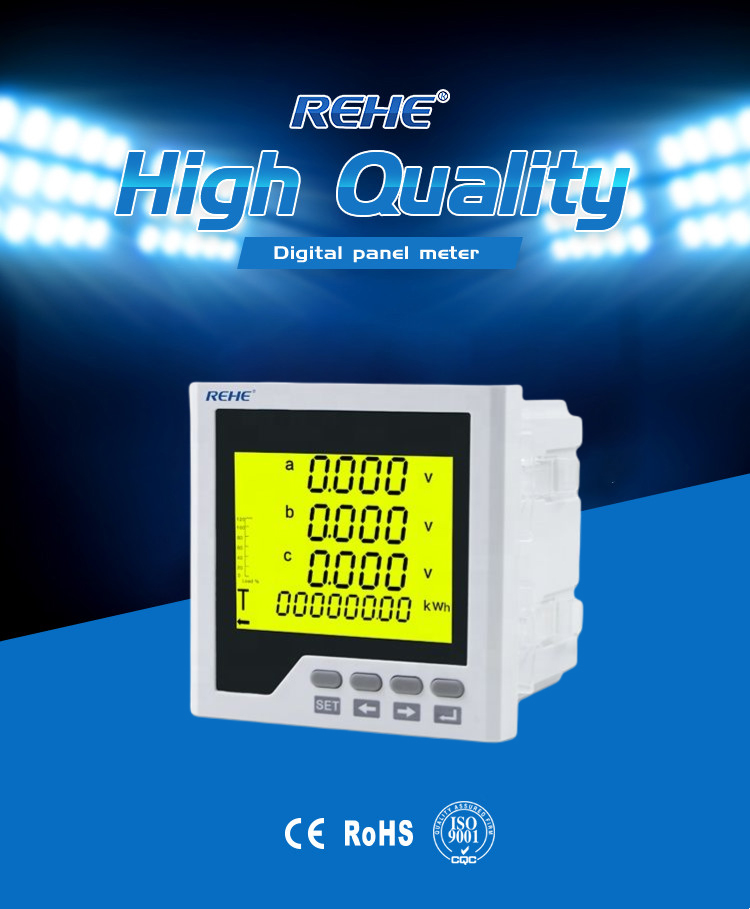

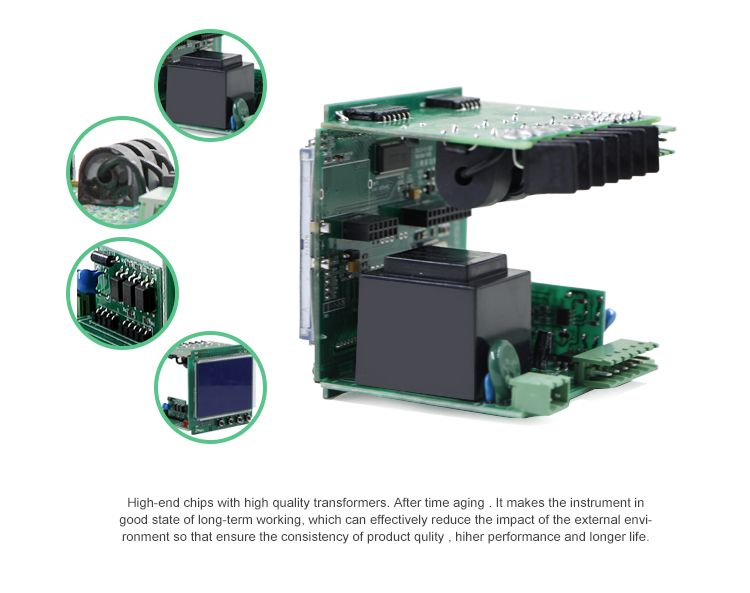

RH-D Series Multi-function Monitoring Meter
Performance Characteristics
1.High precision measurement of three phase voltage, three phase
current, active power, reactive power, apparent power, power
factor, frequency of electric parameters
2.Forward and reverse active or reactive energy measurement
3.Division of electric energy metering, time-sharing power timing
meter reading
4.Measurement of three-phase voltage, three-phase current total
harmonic distortion (THD), 2-31 odd harmonic component
5.Provide the digital tube display, local data query
6.Menu button intuitive, simple operation
7.Current, voltage gain programmable
8.Provide multiple circuit leakage current monitoring
9.Provide multiple loop control nodes, can be used for the alarm, trip
control
10.Support for fire control, remote cut off the fault circuit
11.Support for RS-485 communication, Modubus-RTU protocol
12.Support for switching input, output, analog quantity
transmitting output
13.Convenient installation, wiring is simple, small engineering
quantity
14.A wide range of AC/DC power supply: AC/DC 80-270V
15.To be completed by SCADA, PLC in a variety of communications
software networking
Technical Index
Accuracy of measurement
♦Voltage level 0.5
♦Current level 0.5
♦Active power 0.5
♦Reactive power level 0.5
♦Power factor 0.5
♦Frequency ±0.02Hz
♦Active electric energy class 0.5s or class 0.2s
♦Reactive energy grade 1 or grade 2
Signal input
♦Connection mode of four phase three wire, three phase three line
♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V
♦Rated current AC1A,AC5A
♦Overload voltage:1.2 times ( Continued ), 2 times / second ( instantaneous )
♦Power consumption voltage: <1VA/ phase,current:<0.4VA/phase
♦Impedance >300KΩ, current: <20mΩ
♦The frequency of 45~65Hz
Auxiliary power supply
♦Working range AC/DC 80~270V
♦Power consumption <4VA
Function module
♦Communication interface 1 way RS-485 communication, Modbus-RTU
protocol
♦Baud rate: 1200~9600bps, the default 2400bps
♦Switch input support 4 stem node input
♦The switch output support 3 relay output, capacity: AC 250V/5A, DC
30V/5A
♦Transmission output support 3 analog output: 0/4~20mA or 0~5/10V
♦Electric energy pulse output support 2 electric energy pulse
output,constant:8000imp/KWh(Kvarh)
