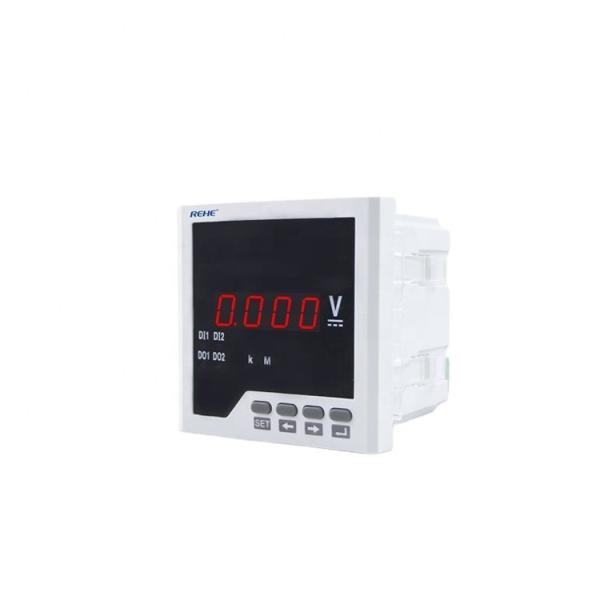

Hot selling Single Phase Digital Voltmeter `

Ask Lasest Price
Brand Name :	SUCHEN
Model Number :	CN-DV21
Supply Ability :	10000 Piece/Pieces per Day
Price :	$8.00 - $10.00/pieces

Add to Cart

Product Details
Company Profile

Hot selling Single Phase Digital Voltmeter `

Products Details

Performance Characteristics

1.High precision measurement measurement of single phase AC voltage or DC voltage

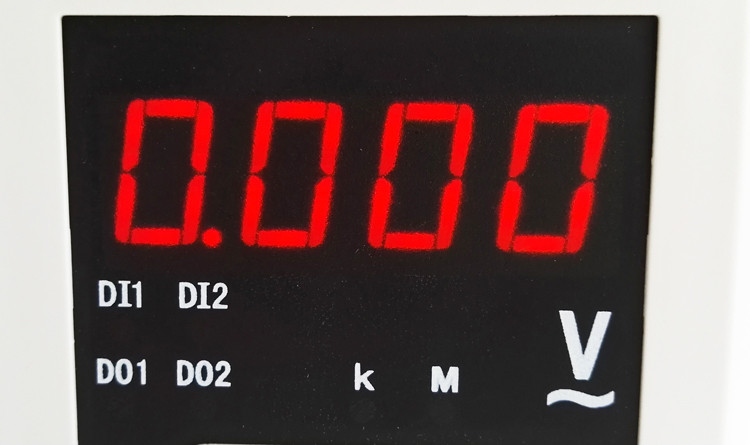

2.Provide the digital tube display, local data query
3.Programmable voltage ratio
4.Support for RS-485 communication, Modbus-RTU protocol
5.Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
6.A variety of shapes to meet the different requirements of the cabinet body electric circuit

Hot selling Single Phase Digital Voltmeter `

Signal input

♦Connection mode of single phase
♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC600V
♦Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
♦Power <1VA/ phase
♦Impedance >300KΩ
♦The frequency: 45~65Hz or DC

Function module

♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol
♦Baud rate: 1200~9600bps, the default 2400bps
♦Switch input support 2 stem node input
♦The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A
♦Transmission output support 1 analog output: 0/4~20mA or 0~5/10V

Hot selling Single Phase Digital Voltmeter `
