| Dimension:customized | custom processing:Yes | Measuring range:0-9999 |
| Model NO.: CN-3AV | accuracy class: 0.5 | Installation:embedded |
| Brand name: SUCHEN | usage:high precision measurement of three phase AC voltage | Auxiliary power supply:DC 80V-270V, DC48V, DC24V, AC220V, AC380V,
AC100V(V) |
| Performance Characteristics |

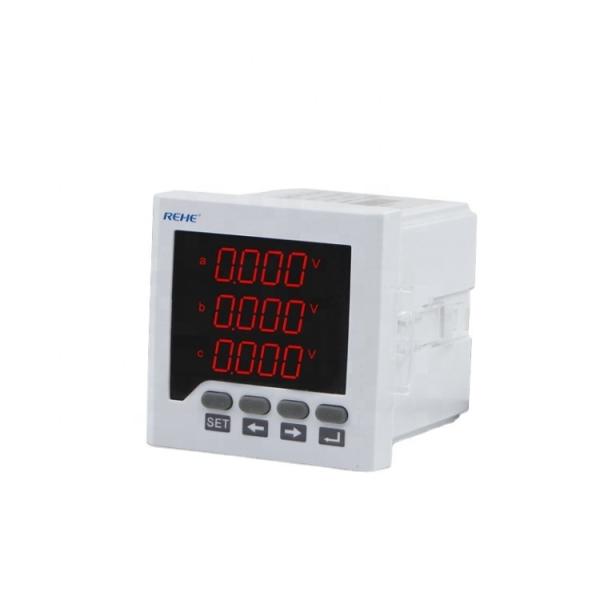

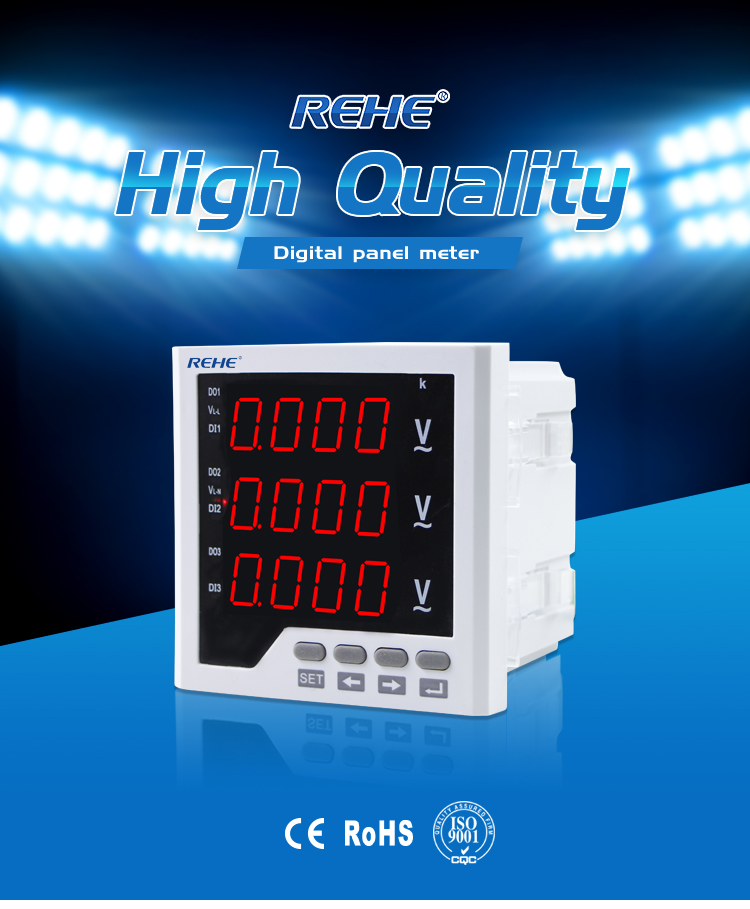

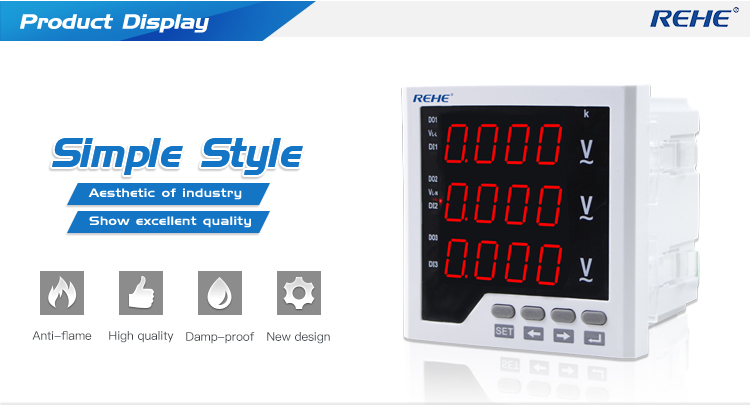

| High precision measurement measurement of three phase AC voltage |
| Provide the digital tube display, local data query |
| Programmable voltage ratio |
| Support for RS-485 communication, Modubus-RTU protocol |
| Support for switching input, output, analog quantity transmitting
output |
| Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V |
| A variety of shapes, to meet the different requirements of the
cabinet body electric circuit |
| Technical Index |
| Accuracy of measurement | Electric current 0.5 |
| Singal input | Connection mode of four phase three wire, three phase three line |
| Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V |
| Over load 1.2 times ( Continued ), 2 times / second ( instantaneous
) |
| Power <1VA/ phase |
| Impedance >300KΩ |
| The frequency of 45~65Hz |
| Auxiliary power supply | AC/DC 80V~270V, AC220V, AC380V, AC100V |
| Power consumption <4VA |
| Function module | Communication interface 1 way RS-485 communication, Modbus-RTU
protocol |
| Baud rate: 1200~9600bps, the default 2400bps |
| Switch input support 4 stem node input |
| The switch output support 3 relay output, capacity: AC 250V/5A, DC
30V/5A |
| Transmission output support 3 analog output: 0/4~20mA or 0~5/10V |
| Environment | Working temperature:-10°C ~+55°C |
| Storage temperature:-25°C ~+70°C |
| Relative humidity is less than 93%, no corrosive gas |
| Elevation≤2500m |
| Safety | Insulation resistance >100MΩ |
| AC withstand voltage AC 2KV |
| Electromagnetic compatibility | ESD level 4 |
| Electrical fast transient burst level 4 |
| Selcction of Specification |
| Digial Intelligent Single phase AC Voltage Meter(9999 display
programmable) |
| Model NO. | Display | Frame size(mm) | Hole size(mm) | Remark |
| CN-3AV1Y | LCD | 160*80 | 152*76 | * |
| CN-3AV2Y | LCD | 120*120 | 111*111 | * |
| CN-3AV3Y | LCD | 96*96 | 92*92 | * |
| CN-3AV4Y | LCD | 120*60 | 114*56 | * |
| CN-3AV5Y | LCD | 96*48 | 92*45 | * |
| CN-3AV6Y | LCD | 72*72 | 68*68 | * |
| CN-3AV7Y | LCD | 80*80 | 76*76 | * |
| Extended Modules: |
| AC/DC power supply(switching power supply)$4 |
| Modbus-RTU RS485 comm:$5 |
| AO: $7 more for each stem node |
| DI: $4 more for each stem node |
| DO:$4 more for each stem node |
| “*” means unconventional products of our corporation |
Order notes: Please write clearly the requested types, input signal
and the functional modules, etc when purchasing.
Others: Factory default settings (Use default setting if no
instruction). |
